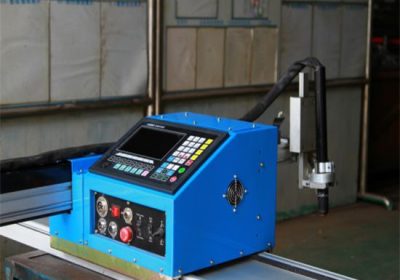

Widely used plasma and laser cutting fume extractor plasma cnc cutting machine

Details:

• Condition: New
• Place of Origin: Shandong, China (Mainland)
• Brand Name: Jiaxin
• Voltage: 220V/380V±10%
• Rated Power: 63A
• Dimension(L*W*H): 2080*3880*1500mm
• Weight: 1500kg
• Certification: CE
• Warranty: 12month
• After-sales Service Provided: Engineers available to service machinery overseas
• Name: plasma cutter kit direct manufacturers cutting machine
• Working Area: 1500x3000mm
• Control system: Beijing startfire control system
• Files transfer: USB interface
• Work type: Untouched arc striking
• Transimission: Gear-wheel transmission
• Process precision: ±0.01mm
• Table: Heavy duty steel frame(lifelong)
• Supplier: Hua yuan or hyper therm supplier
• Color: Blue and black or other

Video:

Description:

Brief Introduction:
1. The CNC flame cutting machine is guide rail fixed, gantry gate move type;
2. The flame cutting guns will cut the flange and web of H beam;
3. Cross arm operation accuracy is within 0.5mm/m;
4. Oxy and acetylene or oxy and acetonum gas as fuel source;
5. Guide rail length is 14M*2PCS;
6. X axis Panasonic servo and pilot reducer driven, Y axis Panasonic servo and pilot reducer driven;
Main Features
1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization, no pollution
5) Apply a linker to connect with the air conveyor, which can directly inline with filling machine.
