water cooled plasma cutting torch Plasma cutting machine

Description

Video:

Description:

1.Beam use linear guide.
2.Beam adopts box-type structure and gantry frame. After welding, using vibration stress relief treatment to residual stress relieving and make it don't becoming deformation.
3.Mechanical transmission system all adopt the precision ball bearings and process accuracy national standard level 7 precision meshing of gear and rack.
4.Drive system adopts planetary reducer by Sino-German cooperation. Its input and output error only 16 arc.In the horizontal and vertical gear transmission structure increase automatic compensation gap device which can make the transmission structure implement order by CNC system.
5.Main drive beam:The longitudinal rail clamping device adopt automatic orientation structure, not eccentric wheel clamping device.Its rely on automatic guide structure spring force and make it walk stable at two guide and won't appear tight and loose phenomenon.
6.All the screw and steel structures part all use black or chrome plating process.

Images:

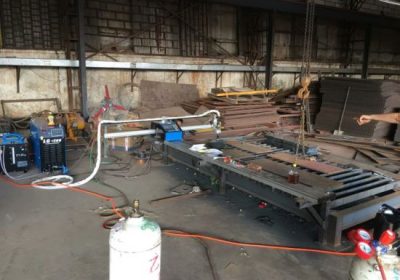

water cooled plasma cutting torch Plasma cutting machine

Recommend Products

2018 hot sale on google 220V 380V cheap CNC Plasma Cutting Table
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Model Number: JX-17H
- After-sales Service Provided: Engineers available to service machinery overseas
- product name: CNC Plasma Cutting Table
- plasma generantor: USA GERMANY CHINA ITALY
- Cutting size: 1300mm X 2500mm OR 1500mm X 3000mm
- Screen: 7inch color display with english and russia
- Controller: beijing start system or as required
- Drive motor: Stepper or servo motor
- Cutting mode: Plasma/oxygen
- THC: automatic
- Programming software: BEIJING,SHAGHAI , USA , GERMANY
- DRAWING: AUTO CAD
chinese manufacture mini portable plasma cutter
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Model Number: JX-14B
- Voltage: 380V/220V
- Rated Power: 500W/800W/1000W
- Dimension(L*W*H): 1530
- Weight: 200kg
- Certification: CE ISO
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Product name: portable cnc cutting machine
- cnc system/controller: Shanghai/Beijing /USA brand
- Cutting mode: flame/plasma/flame and plasma
- Cutting material: sheet metal/thick metal/stainless steel/carbon steel
- DRAWING: AUTO CAD
- cutting speed: 50-3800 mm/min
- running speed: 12000 mm/min
- Drive motor: Stepper motor
- THC: automatic
- LCD Display Dimension: 8 Inches
Jiaxin JX-F(H) Small Portable Mobile CNC Plasma Cutter mini cnc plasma cutter sheet
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Voltage: 220V 50/60HZ
- Rated Power: 220W
- Dimension(L*W*H): 2640*410*330
- Weight: 140/150/150/160kg
- Certification: CE
- Warranty: ONE YEAR
- After-sales Service Provided: Engineers available to service machinery overseas
- Cutting Speed: 0-4000mm/min
- Moving Speed: 0-4000mm/min
- Cutting Depth: 150mm
- Cutting Diameter Range: 8-3000mm
- Repeat Precision: 0.2mm
- Program and ethyne gas cutting: available
- Power Supply: AC220V±10% 50/60HZ
- Fuse: 6A,30A
- NAME: Small Portable Mobile CNC cutting machine
- torch style: plasma and flame
Small type used cnc cutting machine for sale
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Model Number: Jiaxin T4
- Voltage: 220/110V
- Rated Power: 180W
- Dimension(L*W*H): Actual Model
- Weight: 150Kg
- Certification: CE ISO
- Warranty: 12 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- Cutting Mode: Flame/Plasma/Both
- Input Voltage: 220/110V 50/60Hz
- Effective Cutting Area: 1600*3400mm/Customized
- Driver: Stepper Motor Driver
- LCD Dimension: 7 Inches color display
- Flame Cutting Thickness: 6~200mm
- Plasma Cutting Thickness: depend on plasma power
- Program Software: FastCAM Software Professional Version )
- Cutting Accuracy: +/- 0.5mm
- Cutting Speed: 0-2500mm/mim
China manufactory air plasma cutter with high reliability
- Condition: New
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Jiaxin
- Model Number: JXCNC-4000*8000*3CD
- Voltage: 380V/220v
- Rated Power: 3KW
- Dimension(L*W*H): 5400*2000*2000mm
- Weight: 3500kg
- Certification: CE ISO
- Warranty: 1 Year, 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Type: steel sheet low cost cnc plasma cutting machinery
- Plating: Plating
- CNC System: HBCNC controller or Hypertherm Controller
- Cutting material: Stainless steel, carbon steel, other metals
- LCD Dimension: 10.4 inches colorful LCD
- Program Software: FastCAM Software (Professional version)
- Cutting model: Oxy-fuel or plasma
- Power Supply Frequency:: 50HZ
- Flame Cutting Gas: N2; O2 and Air
