High performance metal cnc air plasma cutting machine plasma cutter cnc

Description

Details:

Condition: New
Place of Origin: Shandong, China (Mainland)
Brand Name: Jiaxin
Model Number: JX-1325
Voltage: 380V
Rated Power: 8.5KW
Dimension(L*W*H): 3380*2190*1690mm
Weight: 1400 KG
Certification: CE
Warranty: 2 Years
After-sales Service Provided: Engineers available to service machinery overseas
Keywords: metal cnc air plasma cutting machine plasma cutter cnc
Working area: 1300*2500mm
Supplier: Hua yuan or hyper therm supplier
Driving system: stepper motor
Cutting speed: 15m/min
Control system: Starfire+THC
Rail: Round rail
Table structure: Heavy duty frame
Software: Fastcam Software

Video:

Description:

Application Of Plasma Cutting Machine:
1).Applicable Industries
Ship Building,Construction Equipment,Transport Equipment,Aerospace Industry,Bridge Building, Military Industrial,Wind Power,Structural Steel,Boiler Containers,Agriculture Machinery,Chassis Electrical Cabinets,Elevator Manufacturers, Textile Machinery,Environmental Protection Equipment,Ect.
2).Applicable Materials
Aluminum,Copper,Titanium,Nickel,Iron,Galvanized Sheet,White Steel,Titanium Plate,Carbon Steel, Stainless Steel,Alloy Steel,Composite Metal.

Images:

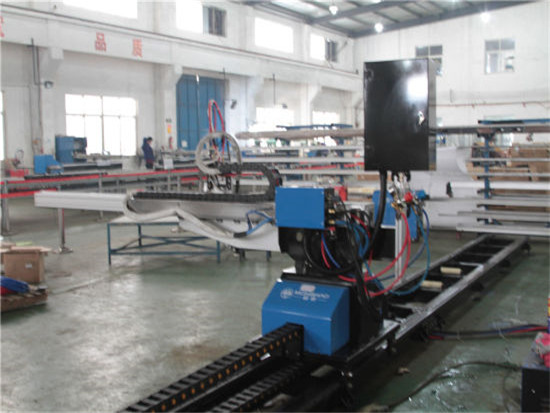

High performance metal cnc air plasma cutting machine plasma cutter cnc
